S-5!® S-5-V Clamp

For a free sample please contact us here.

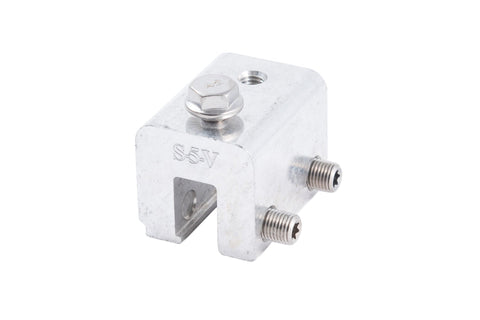

The S-5!® V ("V" stands for vertical) clamp is a cost-effective solution for most machine-folded seams in vertical orientation and within certain dimensions.

The S-5-V clamp is a versatile clamp that fits mechanically fastened, vertical double-folded seam profiles that are up to .47" wide.

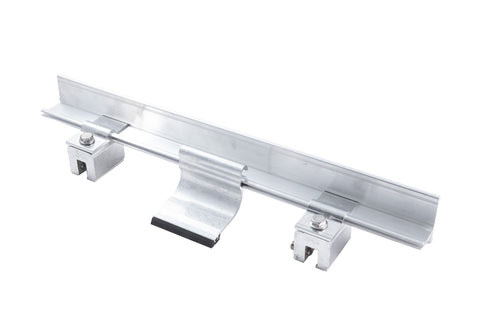

Its simple design and generous dimensioning are what make the S-5-V clamp so versatile for use with the S-5!® snow retention products, such as ColorGard®, as well as with other heavy-duty applications.

Included stainless steel hardware consists of 2 set screws and 1 M8 bolt.

Complete Your System:

• ColorGard Bar
• VersaClip
• SnoClip II (Optional-based on seam height)
• SnoClip III (Optional-based on seam height)

Additional Product Information:

• Click here to download Cut Sheet.
• For detailed product information, please click here.

Job Specific snow retention layouts are available from Rocky Mountain Snow Guards, Inc.  These are provided at no charge.  Snow Guard Depot recommends obtaining a job specific layout for all snow retention projects.  Without a job specific layout, Snow Guard Depot cannot guarantee that snow guards purchased will perform effectively.  Snow retention layouts can be obtained by contacting Rocky Mountain Snow Guards here.
