ColorGard® Bars are 7'8" long.

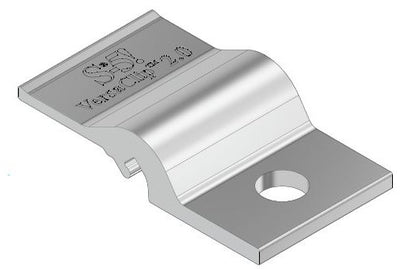

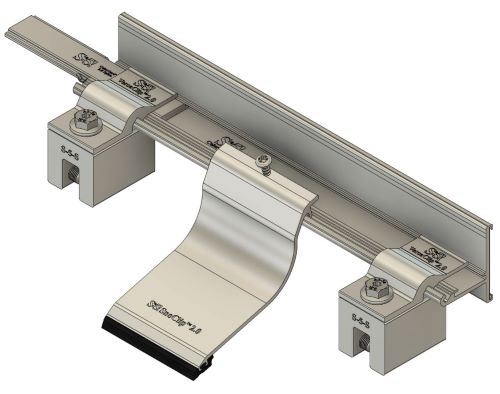

Unpunched S-5!® ColorGard® Bar is the versatile cross-member for the ColorGard® bar-style snow retention system. Easy to install using the VersaClip™ with:
~S-5!® clamps for standing-seam metal roofs
~CorruBrackets on 3/4" or 7/8" corrugated metal roofs
~VersaBrackets™ for exposed (through) fastened bolt-down metal roofs.

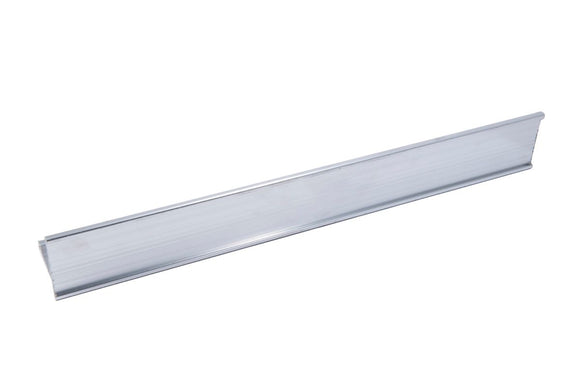

The S-5!® unpunched ColorGard® Bar does not need holes as the VersaClip™ accommodates any seam spacing.

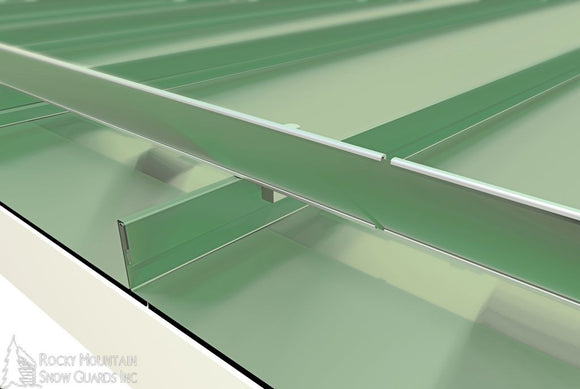

Utilizing ColorStrips inserted into the front slot of the unpunched bar, the ColorGard® system will complement the color of the roof.
Includes 1 splice per bar for joining two ColorGard® Bars together.
Attach to standing seam panels with appropriate S-5!® clamp for your specific metal panel. Browse S-5!® Products Collection here for stocked clamp options.
- VersaClip (required)
- CorruBracket (for 3/4" or 7/8" corrugated metal panels)
VersaBracket 47 (for through-fastened panels)
- ColorStrip (Optional inserts)
- SnoClip II (Optional-based on seam height)
- SnoClip III (Optional-based on seam height)
Job Specific snow retention layouts are available from Rocky Mountain Snow Guards, Inc. These are provided at no charge. Snow Guard Depot recommends obtaining a job specific layout for all snow retention projects. Without a job specific layout, Snow Guard Depot cannot guarantee that snow guards purchased will perform effectively. Snow retention layouts can be obtained by contacting Rocky Mountain Snow Guards here.
