S-5!® S-5-S Clamp

For a free sample please contact us here.

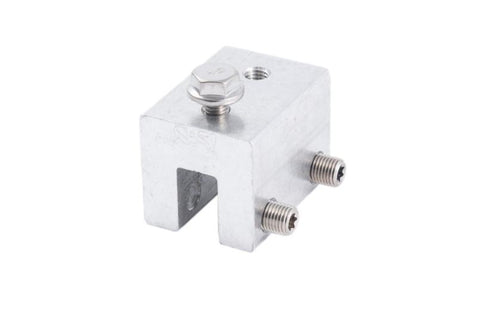

The S-5-S clamp is extraordinarily versatile. Specifically designed for most, popular vertical snap-together standing seam profiles.  The S-5-S clamp can also accommodate horizontal seams where the horizontal projection is 0.54 inches or less without the need to double fold the seam!

Its simple design and ample size make it so strong and versatile it can be used with S-5!_^® snow retention products and other heavy-duty applications.

The S-5-S clamp has been tested for load-to-failure results on most major brands and profiles of standing seam roofing.

Included stainless steel hardware consists of 2 set screws and 1 M8 bolt.

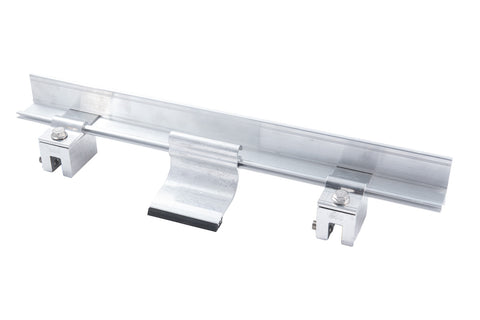

Complete Your System:

• ColorGard Bar
• VersaClip
• SnoClip II (Optional-based on seam height)
• SnoClip III (Optional-based on seam height)

Additional Product Information:

• Click here to download Cut Sheet.
• For detailed product information, please click here.

 Job Specific snow retention layouts are available from Rocky Mountain Snow Guards, Inc.  These are provided at no charge.  Snow Guard Depot recommends obtaining a job specific layout for all snow retention projects.  Without a job specific layout, Snow Guard Depot cannot guarantee that snow guards purchased will perform effectively.  Snow retention layouts can be obtained by contacting Rocky Mountain Snow Guards here.
