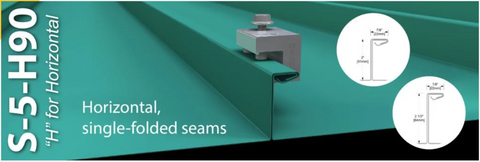

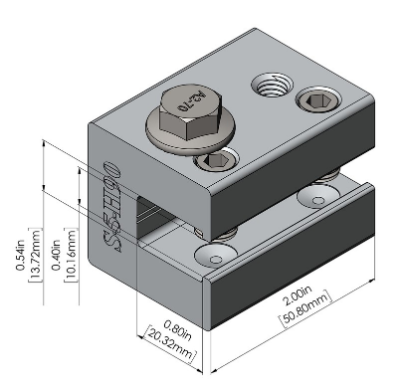

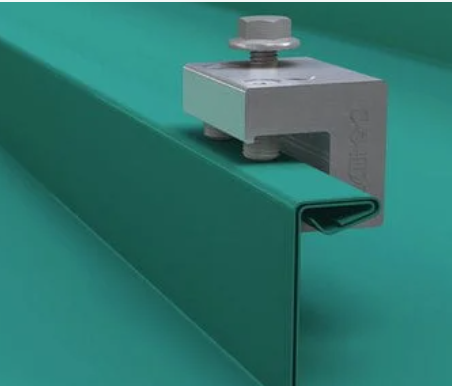

The S-5-H90 clamp is designed for standing seam panels with horizontal, single-folded seams greater than 0.65" (16.5 mm). The setscrews are top-down oriented.
The S-5-H90 clamp fits all standing seams that the S-5-U clamp fits horizontally and fits fully seamed profiles that the S-5-H fits vertically, but is more cost-effective.

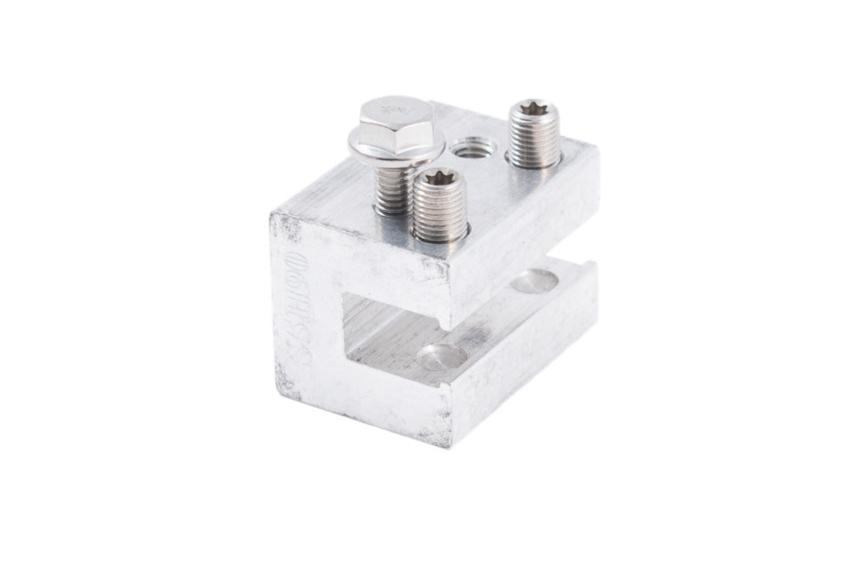

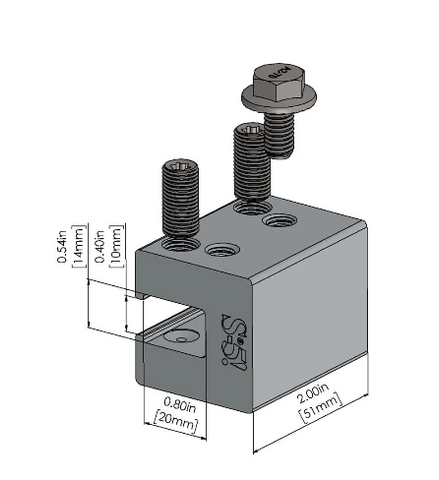

Included stainless steel hardware consists of 2 set screws and 1 M8 bolt.
Complete Your System:

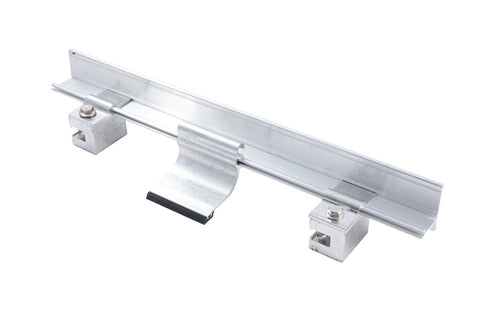

- ColorGard Bar
- SnoClip II (Optional-based on seam height)
- SnoClip III (Optional-based on seam height)
Additional Product Information:
Job Specific snow retention layouts are available from Rocky Mountain Snow Guards, Inc. These are provided at no charge. Snow Guard Depot recommends obtaining a job specific layout for all snow retention projects. Without a job specific layout, Snow Guard Depot cannot guarantee that snow guards purchased will perform effectively. Snow retention layouts can be obtained by contacting Rocky Mountain Snow Guards here.
