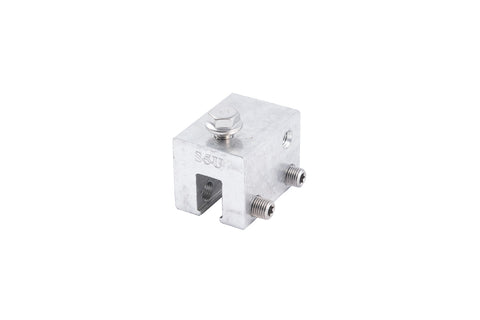

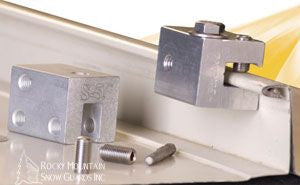

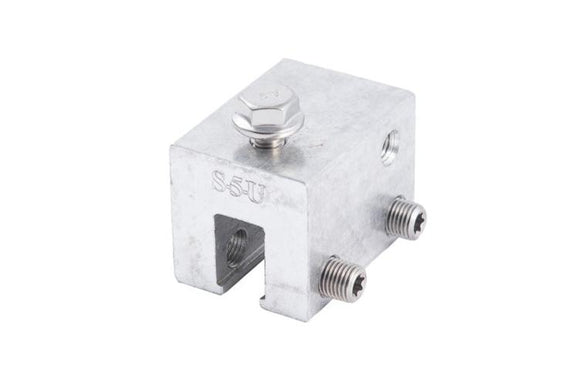

The S-5-U clamp is a popular and versatile clamp that accommodates a majority of the standing-seam profiles manufactured in North America - including structural and architectural profiles.

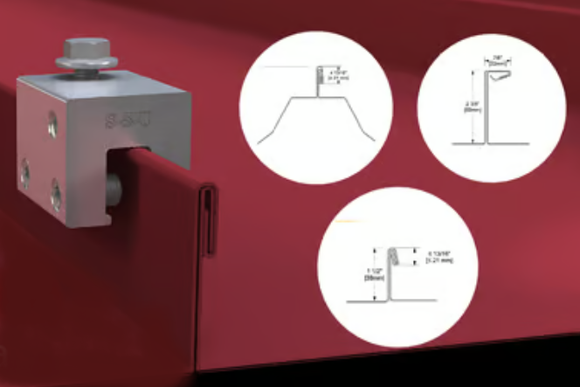

The U clamp can be used on vertically-oriented seams (up to 0.4") and rotated 90 degrees for use on many horizontal seam profiles with horizontal projection equal to or greater than 0.65".
Its simple design, generous dimensioning and multiple hole orientations are what make the S-5-U clamp so versatile for use with S-5!® snow retention products and other heavy-duty applications.
Included stainless steel hardware consists of 2 set screws and 1 M8 bolt.
For horizontal seams under 0.65", DO NOT use this clamp.

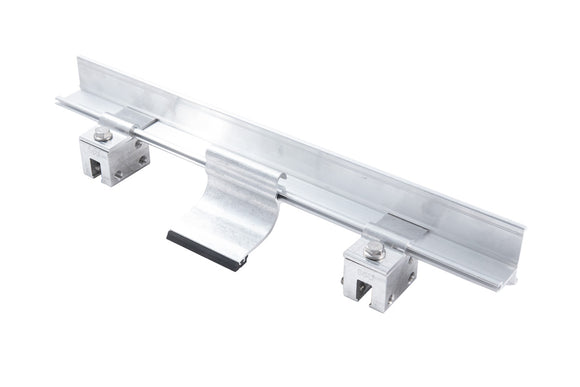

Complete Your System:
- ColorGard Bar
- SnoClip II (Optional-based on seam height)
- SnoClip III (Optional-based on seam height)
Additional Product Information:
Job Specific snow retention layouts are available from Rocky Mountain Snow Guards, Inc. These are provided at no charge. Snow Guard Depot recommends obtaining a job specific layout for all snow retention projects. Without a job specific layout, Snow Guard Depot cannot guarantee that snow guards purchased will perform effectively. Snow retention layouts can be obtained by contacting Rocky Mountain Snow Guards here.
