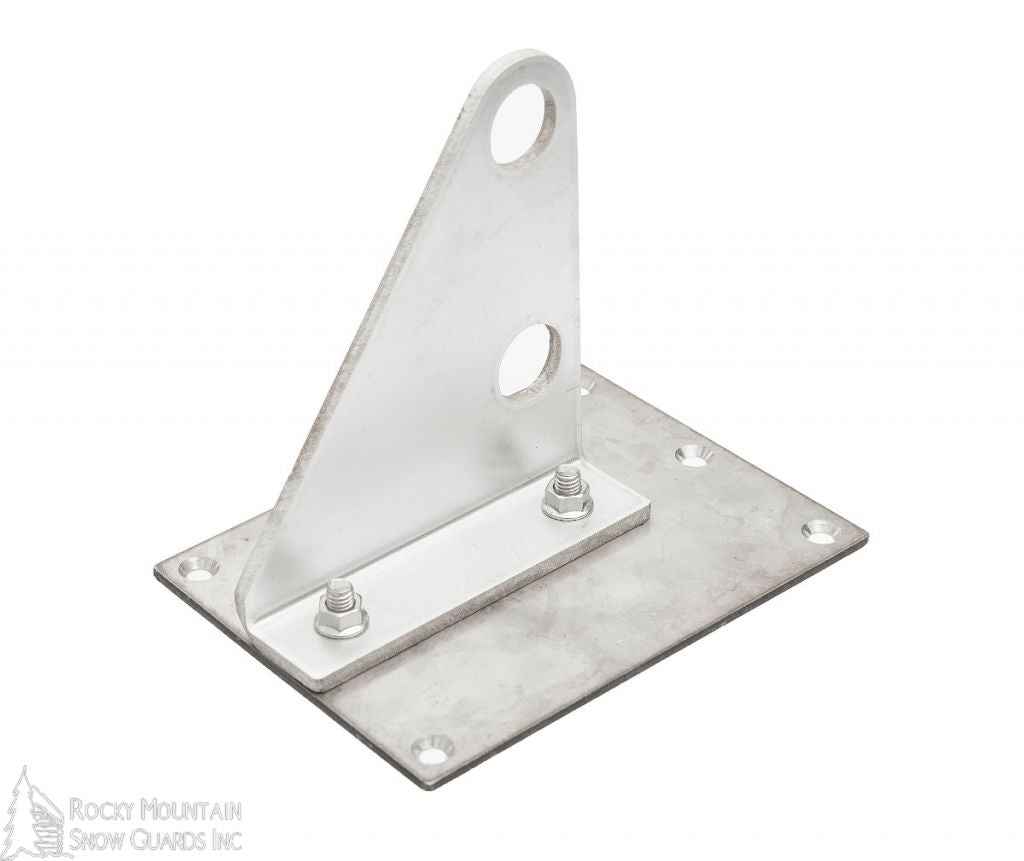

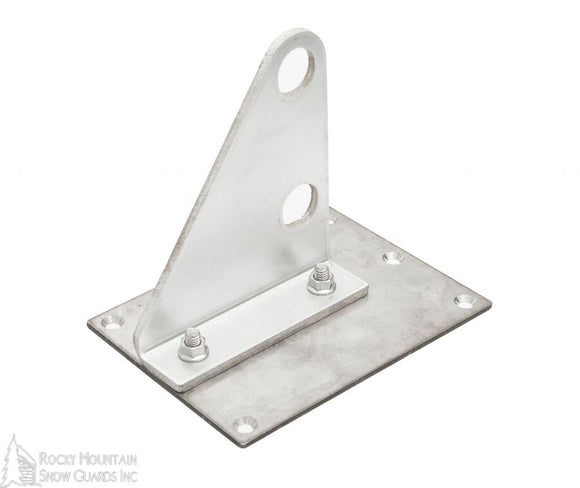

Aluminum bolt-down upright and 6" x 8" galvanneal steel baseplate mount for 2-Pipe Fence-Style snow guard system on single ply membrane roofs
The dark bronze option (not pictured) has a powder-coated aluminum upright with an Electro Phosphorus Coated steel baseplate.
Roof Mounting Method:
- Customer must source their own XHD #15x3" screws (5 per bracket) to fasten baseplate into METAL roof deck.
- Use five (5) CTX #14x2.5" screws to fasten baseplate into WOOD roof deck.
- Flashing membrane (required) is applied over the baseplate with upright bolts exposed.
- Upright is attached to exposed baseplate bolts, ensuring a watertight seal.
Complete your System:
Additional Product Information:
Job Specific snow retention layouts are available from Rocky Mountain Snow Guards, Inc. These are provided at no charge. Snow Guard Depot recommends obtaining a job specific layout for all snow retention projects. Without a job specific layout, Snow Guard Depot cannot guarantee that snow guards purchased will perform effectively. Snow retention layouts and quotes can be obtained by completing Rocky Mountain Snow Guards' Free Layout & Quote Request Form here.
$30.91
$1.31
