For a free sample please contact us here.
Allow 8 to 10 business days for assembly plus transit time.
NOTE: When Ice Flags are added - Allow 6 weeks for fabrication plus transit time.

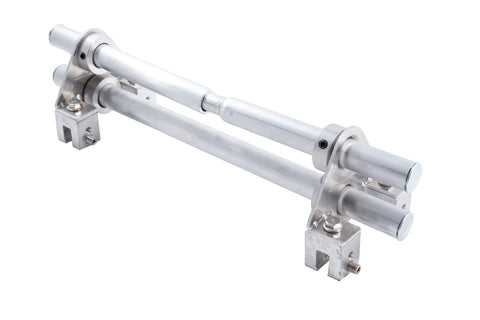

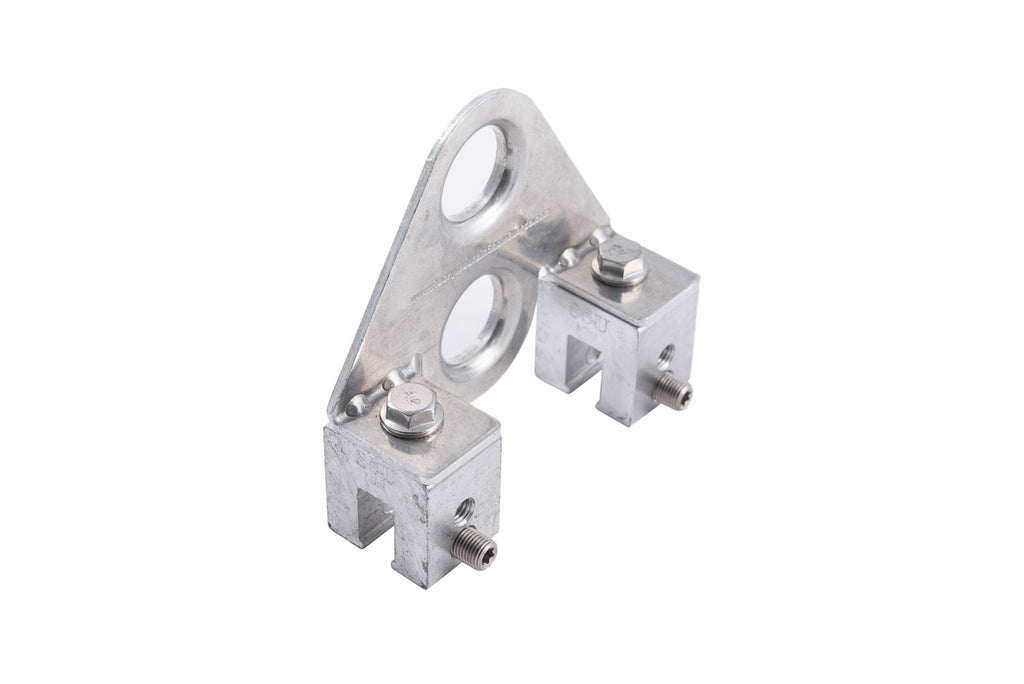

Aluminum 2-pipe snow fence bracket with 2 attached S-5!® U Mini clamps for standing seam metal panels. Effective for snow retention in areas with low to moderate snow loads.

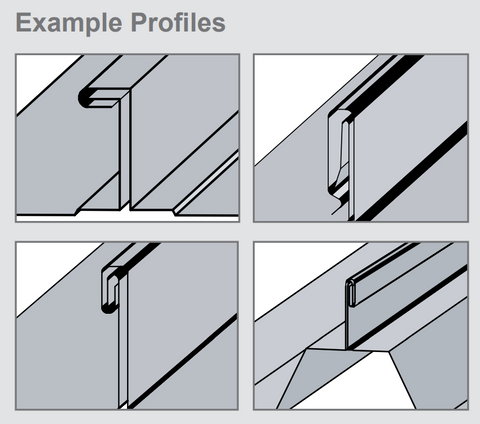

The S-5!® U Mini clamp has multiple hole orientations for both vertically/double-fold seams (up to 0.4") and rotated 90 degrees for horizontal seam profiles with horizontal projection equal to or greater than 0.65".
The S-5!® standing seam clamps are designed to affix directly to the vertical seams of the metal panels without penetrating the seam by tightening the included stainless steel setscrews.
Mounts to standing-seam metal roof panels with:
Powder Coating available for additional charge. For color options and pricing, contact Rocky Mountain Snow Guards.
Additional Product Information:
Job Specific snow retention layouts are available from Rocky Mountain Snow Guards, Inc. These are provided at no charge. Snow Guard Depot recommends obtaining a job specific layout for all snow retention projects. Without a job specific layout, Snow Guard Depot cannot guarantee that snow guards purchased will perform effectively. Snow retention layouts and quotes can be obtained by completing Rocky Mountain Snow Guards' Free Layout & Quote Request Form here.
